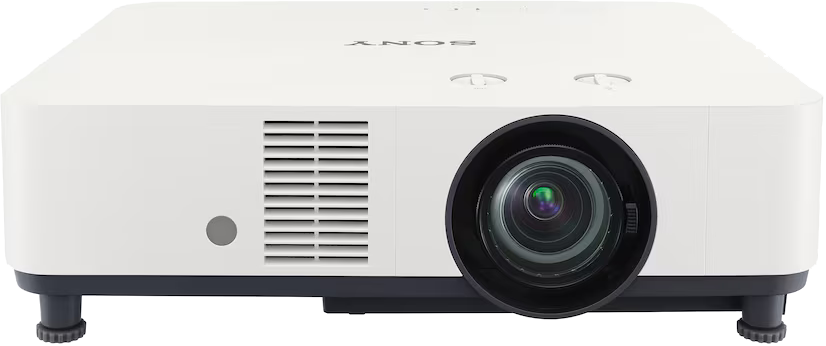

Sony’s brightest ultra-compact professional projectors are enhanced with smart features and an all-new anti-dust system. They’re an inspired choice for conference rooms, university lecture halls and large classrooms as well as Esport applications. 21:9 support. Bold, rich colour. Clearer images and text. 4K 60P input support. 60 Month Warranty Display System 3LCD System Size of Effective Display Area 0.64” (16.3 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10 Number of Pixels 6,912,000 (1920 x 1200 x 3) pixels Focus Manual Zoom Manual (Approx. 16x) Lens Shift Manual, Vertical -35% to 55%, Horizontal: /-15% Throw Ratio 1.23 : 1 to 1.97 : 1 Light SOurce Laser Diode Screen Size 40″ to 300″ (Measured Diagonally) Light Output Standard: 6,400 lm *2 / 7,000 lm (Center) *3 Middle: 4,700 lm Light Output (Colour) Standard: 6,400 lm Middle: 4,700 lm Contrast Ratio (full white / full black) ∞:1 Displayable Scanning Frequency Horizontal: 15 kHz to 92 kHz Vertical: 24 Hz to 92 Hz Keystone Correction (Max.) Horizontal: /- 30 degrees Vertical: /- 30 degrees Computer Signal Input Maximum Signal Resolution: 1920 x 1200 *4 Video Signal Input NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 3840/60p, 3840/30p, 3840/25p, 3840/24p, 4096/60p, 4096/30p, 4096/25p, 4096/24p Input A RGB / Y PB PR input connector: Mini D-sub 15 pin (female) Audio input connector: Stereo mini jack Input B HDMI input connector: HDMI 19-pin, Digital RGB/Y PB PR, HDCP support Audio input connector: HDMI audio support Input C HDMI input connector: HDMI 19-pin, Digital RGB/Y PB PR, HDCP support Audio input connector: HDMI audio support Input D HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control) Video In Video input connector: Phono jack (Composite) Audio input connector: Shared with INPUT A Output Audio output connector: Stereo mini jack Remote D-sub 9-pin (male) / RS232C LAN RJ45, 10BASE-T / 100BASE-TX USB TYPE-A x 1 (for F/W update), TYPEA for Power supply Speaker 16W Acoustic Noice 37 dB / 34 dB Operating Temperature 0°C to 40°C Operating Humidity 20% to 80% Dimensions (mm) 422 (W) x 129 (H) x 338 (D)
