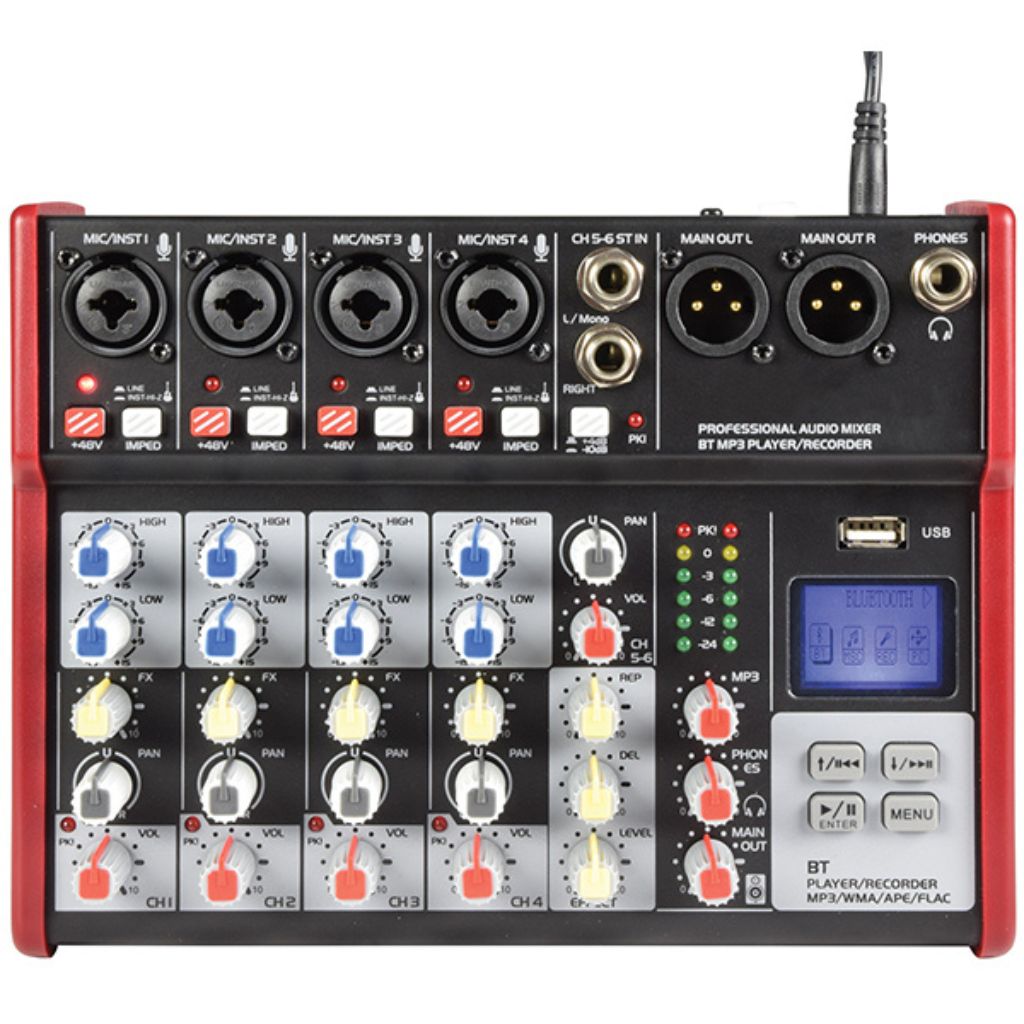

Description DESCRIPTION: Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and 48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls and mono channels also have Effects level to vary the amount of internal digital delay effect added for vocals or instruments. An internal player/recorder with backlit display can accept a USB memory stick containing compressed audio files in various formats or alternatively connect to a smart phone via BT wireless link. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances. SPECIFICATIONS: Inputs: 4 x combo XLR/jack stereo jack Dimensions: 220 x 165 x 66mm Power supply: 5Vdc 1A (adaptor included) Power consumption: max.5W Gain: -14 to 40dB EQ: low: ±15dB @ 80Hz EQ: high: ±15dB @ 12kHz Phantom power: 48V individually switchable (XLR inputs only) Input impedance : mic2k Ohms Input impedance : instrument1M Ohms Input impedance : line20k Ohms Audio source: Internal USB player/recorder & BT receiver Audio format: USB playback mp3, wma, ape, flac / record mp3 (48kHz 128kB/s) Bluetooth version: 2.1 EDR Frequency response: 20Hz – 20kHz (±0.5B) THD N<0.03% : @ 1kHz Dynamic range: 102dB Crosstalk : stereo: 92dB OutputLeft Right balanced: XLR Output impedance: 120 Ohms Max. output level: 3Vrms Weight: 1.17kg FEATURES: Integral USB multi-format audio player BT wireless connectivity Digital delay effect for vocals or instruments Individually switchable 48V phantom power Built in record function Supplied with DC power adaptor
