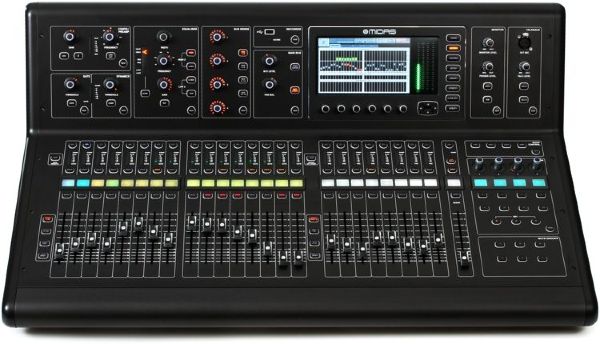

Description Live performance and studio recording digital console with up to 40 simultaneous input channels 32 award-winning MIDAS microphone preamplifiers 25 time-aligned and phase-coherent mix buses AES50 networking allows up to 96 inputs and 96 outputs Open architecture allows for future 96 kHz operation 192 kHz ADC and DAC converters for outstanding audio performance High-performance carbon fibre, aluminium and high-impact steel structure 40 bit floating point digital signal processing 8 DCA and 6 mute groups 8 stereo signal processing effects engines 25 MIDAS PRO motorised 100 mm faders Daylight viewable 7 full colour TFT display screen 32 x 32 channel USB 2.0 audio interface DAW remote control emulations of Mackie Control* and HUI* protocols Optional wireless remote control with MIDAS Apps for iPhone* and iPad* Auto-ranging universal switch-mode power supply 3-Year Warranty Program** Designed and engineered in England. Specification Show less Processing Input Processing Channels 32 Input Channels, 8 Aux Channels, 8 FX Return Channels Output Processing Channels 16 16 aux buses, 6 matrices, main LRC 100 Internal Effects Engines (True Stereo / Mono) 16 Internal Show Automation (structured Cues / Snippets) 500 / 100 Internal Total Recall Scenes (incl. Preamplifiers and Faders) 100 Signal Processing 40-Bit Floating Point A/D Conversion (8-channel, 96 kHz ready) 114 dB Dynamic Range (A-weighted*) D/A Conversion (stereo, 96 kHz ready) 120 dB Dynamic Range (A-weighted*) I/O Latency (Console Input to Output) 0.8 ms Network Latency (Stage Box In > Console > Stage Box Out) 1.1 ms Connectors Midas PRO Series Microphone Preamplifier (XLR) 32 Talkback Microphone Input (XLR) 1 RCA Inputs / Outputs 2 XLR Outputs 16 Monitoring Outputs (XLR / ¼” TRS Balanced) 2 Aux Inputs/Outputs (¼” TRS Balanced) 6 Phones Output (¼” TRS) 2 (Stereo) Digital AES/EBU Output (XLR) 1 AES50 Ports (Klark Teknik SuperMAC) 2 Expansion Card Interface 32 Channel Audio Input / Output ULTRANET P-16 Connector (No Power Supplied) 1 MIDI Inputs / Outputs 1 USB Type A (Audio and Data Import / Export) 1 USB Type B, rear panel, for remote control 1 Ethernet, RJ45, rear panel, for remote control 1 Mic Input Characteristics Design Midas PRO Series THD N (0 dB gain, 0 dBu output) <0.01% (unweighted) THD N ( 40 dB gain, 0 dBu to 20 dBu output) <0.03% (unweighted) Input Impedance (Unbalanced / Balanced) 10 kΩ / 10 kΩ Non-Clip Maximum Input Level 23 dBu Phantom Power (Switchable per Input) 48 V Equivalent Input Noise @ 45 dB gain -125 dB (22 Hz-22 kHz, unweighted) CMRR @ Unity Gain (Typical) >70 dB CMRR @ 40 dB Gain (Typical) >90 dB Input/Output Characteristics Frequency Response @ 48 kHz Sample Rate 0 dB to -1 dB (20 Hz-20 kHz) Dynamic Range, Analogue In to Analogue Out 106 dB (22 Hz-22 kHz, unweighted) A/D Dynamic Range, Output (Typical) 109 dB (22 Hz-22 kHz, unweighted) Crosstalk Rejection @ 1 kHz, Adjacent Channels 100 dB Output level, XLR Connectors (Nominal / Maximum) 4 dBu / 21 dBu Output Impedance, XLR Connectors (Unbalanced / Balanced) 50 Ω / 50 Ω Input impedance, TRS Connectors (Unbalanced / Balanced) 20 kΩ / 40 kΩ Non-Clip Maximum Input Level, TRS Connectors 21 dBu Output Level, TRS (Nominal / Maximum) 4 dBu / 21 dBu Output Impedance, TRS (Unbalanced / Balanced) 50 Ω / 50 Ω Phones Output Impedance / Maximum output Level 40 Ω / 21 dBu (Stereo) Residual Noise Level, Out 1-16 XLR Connectors, Unity Gain -85 dBu 22 Hz-22 kHz unweighted Residual Noise Level, Out 1-16 XLR Connectors, Muted -88 dBu 22 Hz-22 kHz unweighted Residual Noise Level, TRS and s Monitor out XLR Connector -83 dBu 22 Hz-22 kHz unweighted Display Main Screen 7″ TFT LCD, 800 x 480 Resolution, 262k Colours Channel LCD Screen 128 x 64 LCD with RGB Colour Backlight Main Meter 24 Segment (-57 dB to Clip) Power Switch-Mode Power Supply Auto-Ranging 100-240 VAC (50/60 Hz) ± 10% Power Consumption 120 W Physical Standard Operating Temperature Range 5°C – 40°C (41°F – 104°F) Dimensions 891 x 612 x 256 mm (35.1 x 24.1 x 10.1″) Weight 25 kg (55 lbs)
