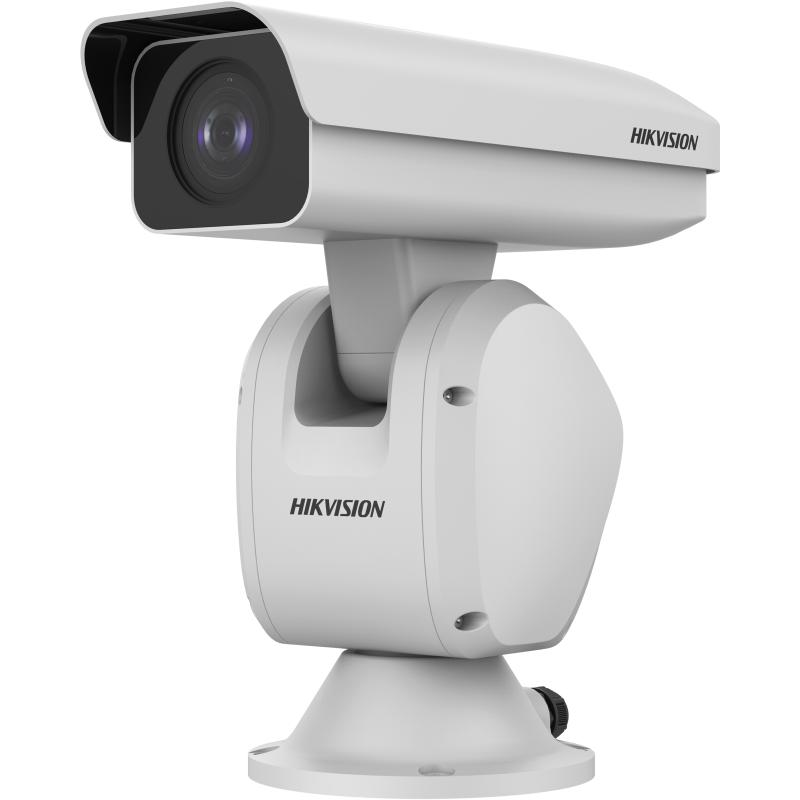

7-inch 2 MP 36X DarkFighter IR Network Positioning System 1/1.8″ progressive scan CMOS Up to 1920 × 1080 @ 30 fps resolution Min. illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR 36 × optical zoom, 16 × digital zoom 120 dB WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure, Regional Focus Up to 150 m IR distance Support H.265 /H.265 video compression Specification Camera Lens Illuminator PTZ Video Audio Network Image Interface Event Deep Learning Function General Approval Camera Image Sensor1/1.8″ progressive scan CMOS Max. Resolution1920 × 1080 Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON)，0 Lux with IR Shutter Speed1/1s~1/30000 s Day & NightDay, Night, Auto, Schedule Zoom36 × optical, 16 × digital Slow Shutteryes Lens Focal Length4.6~165.6 mm，36 × optical FOVHorizontal field of view: 55° to 2.0° (Wide-Tele) FocusAuto/Semi-automatic/Manual ApertureF1.6 Zoom Speedapprox. 4.8 s Illuminator Supplement Light TypeIR Supplement Light Range150 m Smart Supplement Lightyes PTZ Movement Range (Pan)360° endless Movement Range (Tilt)From 40° to -90° (auto flip) Pan Speed Configurable, from 0.1°/s to 100°/s, Preset speed: 100°/s Tilt Speed Configurable, from 0.1°/s to 50°/s Preset Speed: 100°/s Proportional Panyes Presets300 Preset Freezingyes Patrol Scan8 patrols, up to 32 presets for each patrol Pattern Scan4 pattern scans, record time over 10 minutes for each scan Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan 3D Positioningyes PTZ Status Displayyes Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output Power-Off Memoryyes Video Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) Video Compression Main Stream: H.265 /H.265/H.264 /H.264 Sub-stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG Video Bit Rate32 Kbps to 16384 Kbps H.264 TypeBaseline Profile/Main Profile/High Profile H.265 TypeMain Profile Scalable Video Coding (SVC)Support Region Of Interest (ROI)8 fixed regions for each stream Audio Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2,PCM Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2) Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz Environment Noise Filteringyes Network ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour Simultaneous Live ViewUp to 20 channels APIOpen Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP User/HostUp to 32 users, 3 user levels: administrator, operator, and user SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR) ClientiVMS-4200, HikCentral Pro, Hik-Connect Web BrowserIE11, Chrome 57 , Firefox 52 , Safari 11 Image Image Parameters Switchyes Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser Day/Night Switchauto Wide Dynamic Range (WDR)120 dB WDR SNR≥52dB DefogDigital Defog Image EnhancementHLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable Interface Ethernet Interface1 RJ45 10 M/100 M Ethernet On-Board Storagesupport microSD/microSDHC/microSDXC cards, up to 256 GB Audio1-ch audio input and 1-ch audio output Alarm7-ch alarm input and 2-ch alarm output RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) Event Basic EventMotion detection, video tampering alarm, exception, alarm input and output Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection LinkageManual tracking, Event tracking Smart TrackingUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) Deep Learning Function Face CaptureSupport detecting up to 10 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face. General Power24 VAC (Max. 55 W) DimensionΦ181 mm × 396 mm × 377.5 mm (Φ 7.13″ × 15.59″ × 14.86″) Weight7.6 kg (16.76 lb.) Operating ConditionTemperature: Outdoor: -40°C to 70°C (-40°F to 158°F),Humidity: ≤ 90% General FunctionAnti-flicker, heartbeat, mirror, flash log, password reset via e-mail, pixel counter, password protection, one-key reset, three streams Approval ProtectionIP66, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection SKU: DS-2DY7236IX-A(T5) Category: Network Positioning HiKvision
