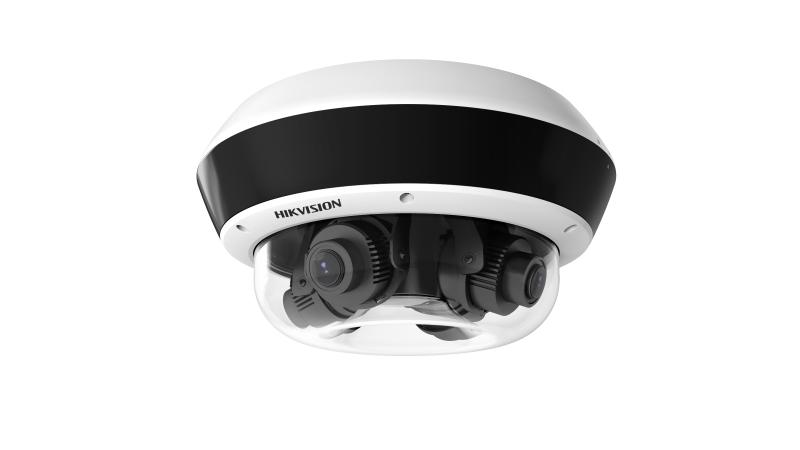

HIKVISION DS-2CD6D54G1-IZ(S) 4-Directional Multisensor Network Camera

EOL 4-Directional Multisensor Network Camera 4 adjustable lenses in one camera cover up to 360° field of view, ensuring no blind area monitoring and the monitoring tilt angle can be adjusted Each lens up to 5 MP, capturing clear images, and more details can be displayed on video wall Clear imaging against strong back light due to 120 dB true WDR technology Water and dust resistant (IP67) and vandal proof (IK10) 3D DNR technology delivers clean and sharp images -S: audio and alarm interface available Specification Camera Lens Illuminator Video Audio Network Image Interface Event General Approval Camera Image Sensor1/2.7″ Progressive Scan CMOS Max. Resolution2560 × 1920 Min. Illumination Color: 0.0125 Lux @(F1.9, AGC ON) B/W: 0.0025 Lux @(F1.9, AGC ON), 0 Lux with IR Shutter Time1 s to 1/100,000 s Day & NightIR cut filter Angle AdjustmentPan: -60° to 60°, tilt: 10° to 90°, rotate: 0° to 350° Lens Lens TypeVarifocal lens, 2.8 to 8 mm Focal Length & FOV2.8 to 8 mm, horizontal FOV 100° to 49°, vertical FOV 72° to 36.4°, diagonal FOV 134.4° to 61.4° Lens MountØ14 FocusManual, semi-auto ApertureF1.9 Illuminator Supplement Light TypeIR Supplement Light RangeUp to 30 m IR Wavelength850 nm Video Main Stream 50 Hz: 25 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 24 fps (704 × 480, 640 × 480) Third Stream 50 Hz: 6 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 8 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Video Compression Main stream: H.265 /H.265/H.264 /H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Video Bit Rate32 Kbps to 16 Mbps H.264 TypeBaseline Profile/Main Profile/High Profile H.265 TypeMain Profile Scalable Video Coding (SVC)H.264 encoding Region of Interest (ROI)4 fixed regions for each stream Target CroppingYes Audio Audio CompressionWith -S model: G.711/G.722.1/G.726/MP2L2/PCM Audio Bit RateWith -S model: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM) Audio Sampling RateWith -S model: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise FilteringWith -S model: Yes Network ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour Simultaneous Live ViewUp to 20 channels APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome User/HostUp to 32 users. 3 user levels: administrator, operator and user SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface Network StoragemicroSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR ClientiVMS-4200, Hik-Connect, Hik-Central Web BrowserIE8 , Chrome41.0-44, Firefox30.0-51, Safari8.0-11 Image Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S) Wide Dynamic Range (WDR)120 dB SNR≥ 52 dB Image EnhancementBLC, HLC, 3D DNR, Defog, EIS Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format Interface Ethernet Interface1 RJ45 10M/100M/1000M Ethernet port; built-in RS-232 On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB AudioWith -S model: 1 input (line in), 1 output (line out), 3.5 mm three-contact AlarmWith -S model: 2 inputs, 2 outputs (max. 24 VDC, 1 A) RS-485 With -S model: 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self- adaptive) Reset KeyYes Event Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Smart Event Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Scene change detection, audio exception detection(-S), defocus detection LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture General Power 12 VDC± 20%, 1.8 A, 22 W, reverse polarity protection, three-core terminal block 24 VAC ± 20%, 1.4 A, 22 W PoE: 802.3at, Class 4, 42.5 to 57 VDC, 0.44 to 0.33 A, 19 W DimensionØ250 × 114.9 mm (9.8″ × 4.5″) Package Dimension336 × 261 × 293 mm (13.2″ × 10.3″ × 11.5″) WeightApprox. 2.2 kg (4.9 lb.) With Package WeightApprox. 3.9 kg (8.6 lb.) Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) General FunctionAnti-flicker, 3 streams, heartbeat, mirror, privacy masks Approval EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KV (KN 32:2015, KN 35: 2015) Safety UL (UL 60950-1); CB (IEC 60950-1:2005 Am 1:2009 Am 2:2013, EN 60950-1:2005 Am1:2009 Am 2:2013); BIS (IS 13252(Part 1):2010 A1:2013 A2:2015) Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006) ProtectionIK10 (IEC 62262:2002), IP67 (IEC 60529-2013) SKU: DS-2CD6D54G1-IZ(S) Category: Hikvision IP CAMERA 5MP
