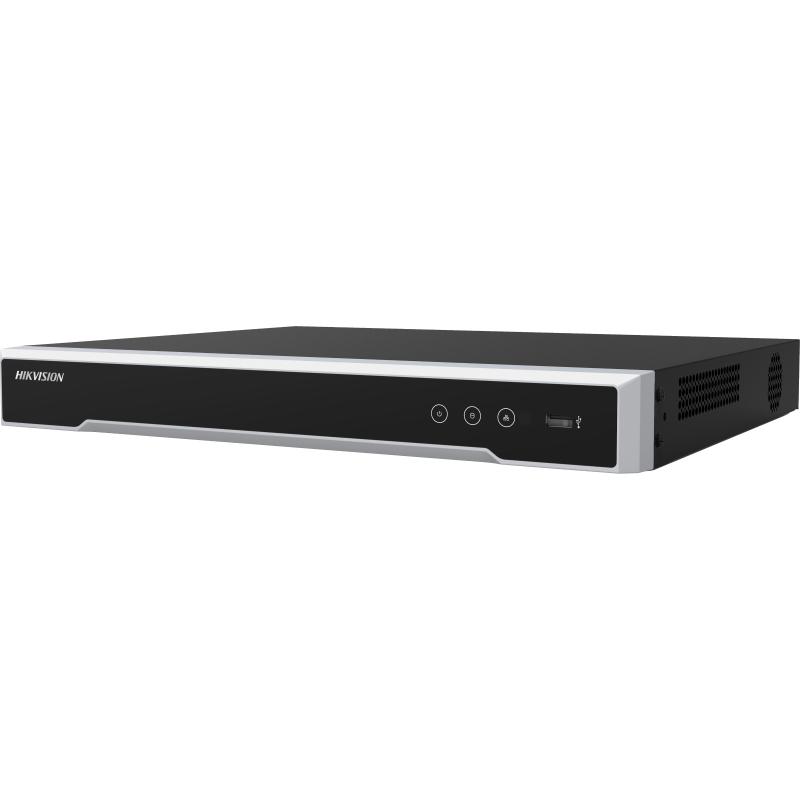

EOL 8-ch 1U 4K NVR Up to 8-ch IP camera inputs H.265 /H.265/H.264 /H.264 video formats Up to 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity 1 HDMI and 1 VGA interfaces, both interfaces support independent video outpu 2 SATA interfaces for HDD connection (up to 10 TB capacity per HDD) Up to 80 Mbps incoming bandwidth Specification Video and Audio Decoding Network Auxiliary Interface General Certification Video and Audio IP Video Input8-ch Incoming Bandwidth80 Mbps Outgoing Bandwidth160 Mbps HDMI Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz VGA Output1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz Video Output ModeHDMI/VGA independent output Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ) Audio Output1-ch, RCA (Linear, 1 KΩ) Two-Way Audio1-ch, RCA (2.0 Vp-p, 1kΩ, using the audio input) Decoding Decoding FormatH.265/H.265 /H.264/H.264 Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback8-ch Decoding Capability1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) Stream TypeVideo, Video & Audio Audio CompressionG.711ulaw/G.711alaw/G.722/G.726 Network Remote Connection128-ch Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface Auxiliary Interface SATA2 SATA interfaces CapacityUp to 10 TB capacity for each HDD USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 Alarm In/Out4/1 General Power Supply12 VDC, 3.33A Consumption≤ 15 W (without HDD) Working Temperature-10 °C to 55 °C (14 °F to 131 °F) Working Humidity10 to 90 % Dimension (W × D × H)385 × 315× 52 mm (15.2″ × 12.4″ × 2.0″) Weight≤ 1 kg (without HDD, 2.2 lb.) Certification FCCPart 15 Subpart B, ANSI C63.4-2014 CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 SKU: DS-7608NI-K1-1 Category: NVR HIKVISION 8CH
