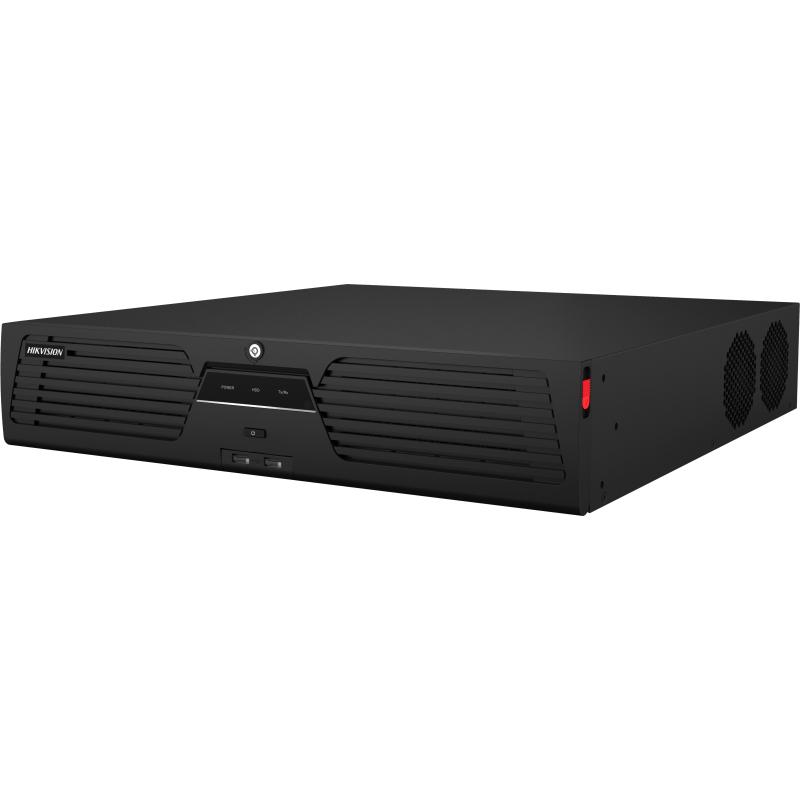

DS-9664NI-M8 64-ch 2U 4K NVR Up to 64-ch IP camera inputs Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth 2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera Advanced streaming technology enables smooth live view in poor network conditions Supports RAID 0, 1, 5, 6, 10 and N M hot spare for even more reliable data storage, effectively avoids data loss risks Up to 8-ch IP speakers can be connected Specification Video and Audio Decoding Network RAID Auxiliary Interface General Certification Video and Audio IP Video Input64-ch Incoming Bandwidth400 Mbps Outgoing Bandwidth400 Mbps HDMI 1 Output8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz HDMI 2 Output 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p. VGA 1 Output1920 × 1080/60 Hz VGA 2 Output1920 × 1080/60 Hz Video Output Mode HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 Audio Output2-ch, RCA (Linear, 1 KΩ) Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) Decoding Decoding FormatH.265 /H.265/H.264 /H.264 Recording Resolution32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous playback16-ch Decoding Capability2-ch@32 MP (30 fps) 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps) Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM Network Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface Camera Access ProtocolONVIF(Version 2.5), RTSP RAID RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10 Auxiliary Interface Serial Interface1 RS-485 (full-duplex), 1 RS-232 SATA8 SATA interfaces supporting hot-plug eSATA1 eSATA interface CapacityUp to 16 TB capacity for each disk Alarm In/Out16/9 USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0 Ctrl 12V Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9. DC 12V12 VDC, 1 A power output General Power Supply100 to 240 VAC, 50 to 60 Hz Consumption≤ 50 W (without HDD) Working Temperature-10 °C to 55 °C (14 °F to 131 °F) Working Humidity10% to 90% Chassis2U chassis Dimension (W × D × H)445 × 465 × 93 mm ( 17.5″× 18.3″ × 3.7″) Weight≤ 10 kg (without HDD, 22 lb.) Certification Obtained CertificationCE, FCC CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 SKU: DS-9664NI-M8 Category: NVR HIKVISION 64CH
