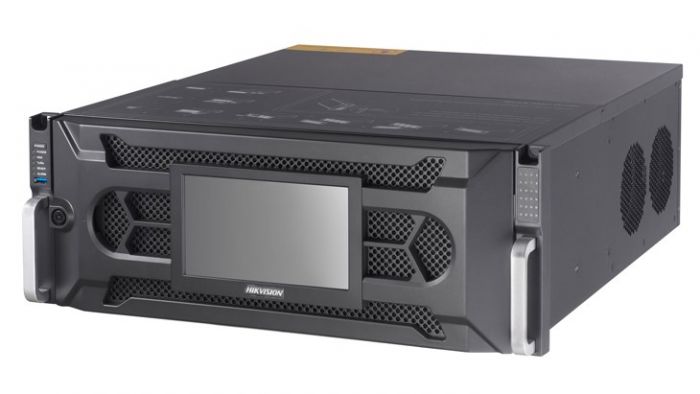

128-ch 4U 4K Super NVR Up to 128 channel IP cameras can be connected Up to 768 Mbps high incoming bandwidth ensures IP cameras can be connected 2 HDMI interfaces (different source), 1 VGA interfaces, and 1 decoding board 24 HDD can be used for continuous video recording Redundant power supply improves system stability Supports some special cameras, including people counting camera/ANPR(automatic number plate recognition) camera/fisheye camera Advanced streaming technology enables smooth live view in poor network conditions Supports RAID 0, 1, 5, 6, 10 and N 1 hot spare for even more reliable data storage, effectively avoids data loss risks Video And Audio IP Video Input128-ch Incoming Bandwidth768 Mbps Outgoing Bandwidth512 Mbps Incoming Bandwidth (RAID Mode)768 Mbps Outgoing Bandwidth (RAID Mode)512 Mbps TLS Outgoing Bandwidth128 Mbps, or 64 Mbps (when RAID is enabled) HDMI OutputTwo independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160), 4K (3840 × 2160) /30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz VGA Output1-ch. Resolution: 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz LCD OutputOptional: One 7 inch LCD Audio Output1-ch. RCA (2.0 Vp-p, 1 KΩ) Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) Decoding Decoding FormatH.265, H.265 , H.264, H.264 ,MPEG4, MJPEG (for Hikvision IP camera only) Recording Resolution12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous PlaybackUp to 16 channels Decoding Capability3-ch@12 MP (30fps), 5-ch@8 MP (30fps), 6-ch@6 MP (30fps), 10-ch@4 MP (30fps), 20-ch@1080p (30 fps) Network Network ProtocolIPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS Camera Access ProtocolHIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO Network Interface4, RJ45 10M/100M/1000M self-adaptive Ethernet interface RAID RAID TypeRAID0, RAID1, RAID5, RAID 6, and RAID10 Auxiliary Interface SATA24 SATA interfaces supporting hot-plug CapacityUp to 10 TB for each HDD Serial InterfaceRS-232; RS-485; Keyboard USB InterfaceFront Panel: 1 × USB 2.0; Rear Panel: 2 × USB 3.0 Alarm In/Out16/8 ESATA1 × eSATA interface Mini SASOptional: 2 × mini SAS interface Decoding Board1 Extension BoardOptional: One extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs. General Power Supply100 to 240 VAC, 50 to 60Hz, 5 A Consumption≤ 140W (without HDD) Working Temperature0 °C to 50 °C (32 °F to 122 °F) Working Humidity10% to 90% Dimension (W × D × H)447 × 528 × 172mm (17.6 × 20.8 × 6.8 inch) Weight≤ 23 kg (50.7 lb, without HDD) Video Wall Management HDMI Output/Input6/1 HDMI Output Resolution4K (3840×2160)/60Hz, 4K (3840×2160)/30Hz, 2K (2560×1440)/60Hz, 1080p (1920×1080)/60Hz, SXGA (1280×1024)/60Hz, 720p (1280×720)/60Hz, XGA (1024×768)/60Hz HDMI Input Resolution1080p (1920×1080), SXGA (1280×1024), 720p 1280×720), XGA (1024×768) Decoding Capacity48-ch@1080p Decoding Resolution12 MP/8 MP/7 MP/6 MP/5 MP/3 MP/1080p/UXGA/720p/VGA/4CIG/DCIF/2CIF/CIF/QCIF CollageSupported Auto-SwitchSupported Open WindowSupported Layer OverlaySupported Window RoamingSupported Display Local Signal Source On Video WallSupported SKU: DS-96128NI-I24/H Category: NVR HIKVISION 128CH
