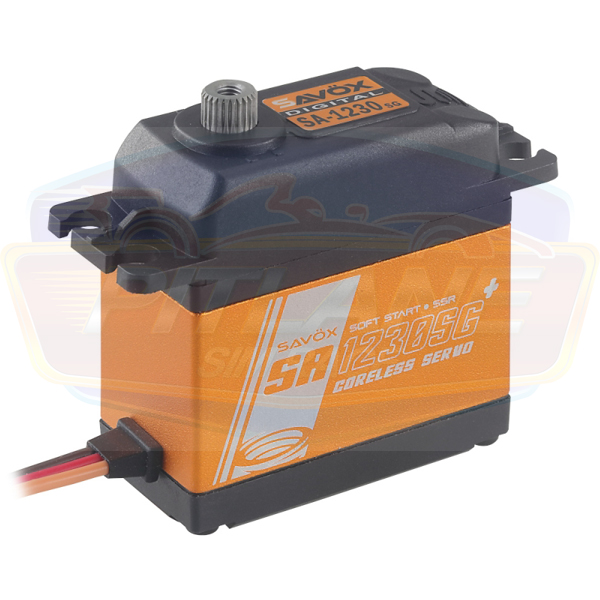

Descrizione The Savox SA-1230SG Monster Torque Steel-Gear digital servo is the servo that is ideal for those requiring extra torque, but not using high voltage as a power source. Features: Combines leading edge technology with super high 12 bit (4096) resolution. Extremely strong unique steel gears ensure long-life and durability. Ideal for steering on rock crawlers, monster trucks, and 1/8th scale vehicles. NEW: SSR mode compatible NEW: SOFT START Specifications: Torque @ 4,8v – 30.0kg @ 6.0v – 36.0kg Speed @ 6v – 0.20 sec/60 deg @ 7.4v – 0.16 sec/60 deg Dimensions L x W x H (mm) 40.3 x 20.2 x 45 Weight 79g Technical Details: Operating Temperature: (-10° – 50°C) Running Current (no load): 180mA @6.0V, 250mA @7.4V Stall Current (at locked): 4200mA @6.0V, 5300mA @7.4V Idle Current: 5mA @6.0V, 5mA @7.4V Wire Length: 200 /- 5mm Output Gear Spline: 25 Tooth Bearings: 2BB Operating Travel: 100° (1000 → 2000 µ second) Neutral Position: 1.500 µ second Pulse Width Range: 800 → 2200 µ second Maximum Travel: Appx 130° (900 → 2100 µ second) Refresh Rate: 333 Hz Motor Type: Coreless
